This is Funky-coder Quattro - for flightsim and simracing! Designed to make it easier to manage tunables on aircraft with up to four engines, or tunable engines/chassis characteristics such as ABS, ARB, TCS, etc in simracing.
- Four dual encoders (with push button) for controlling mixture, cowls, on up to four engines. Or maybe barometer, altitude, comms etc. In simracing, use it for ABS, brake balance/migration, boost, fuel map
- Two funky switches (4-way with rotary encoder) for even more control; altering camera position, interacting with Garmin GPS, door mirrors, ...
- Left rotary switch for selecting 1 of 3 layers. This applies to top row only, multiplying the total encoders from 8 to 24
- The second rotary switch is disguised as a three position ignition switch (no spring return)
- Plug and play, no drivers or external apps needed

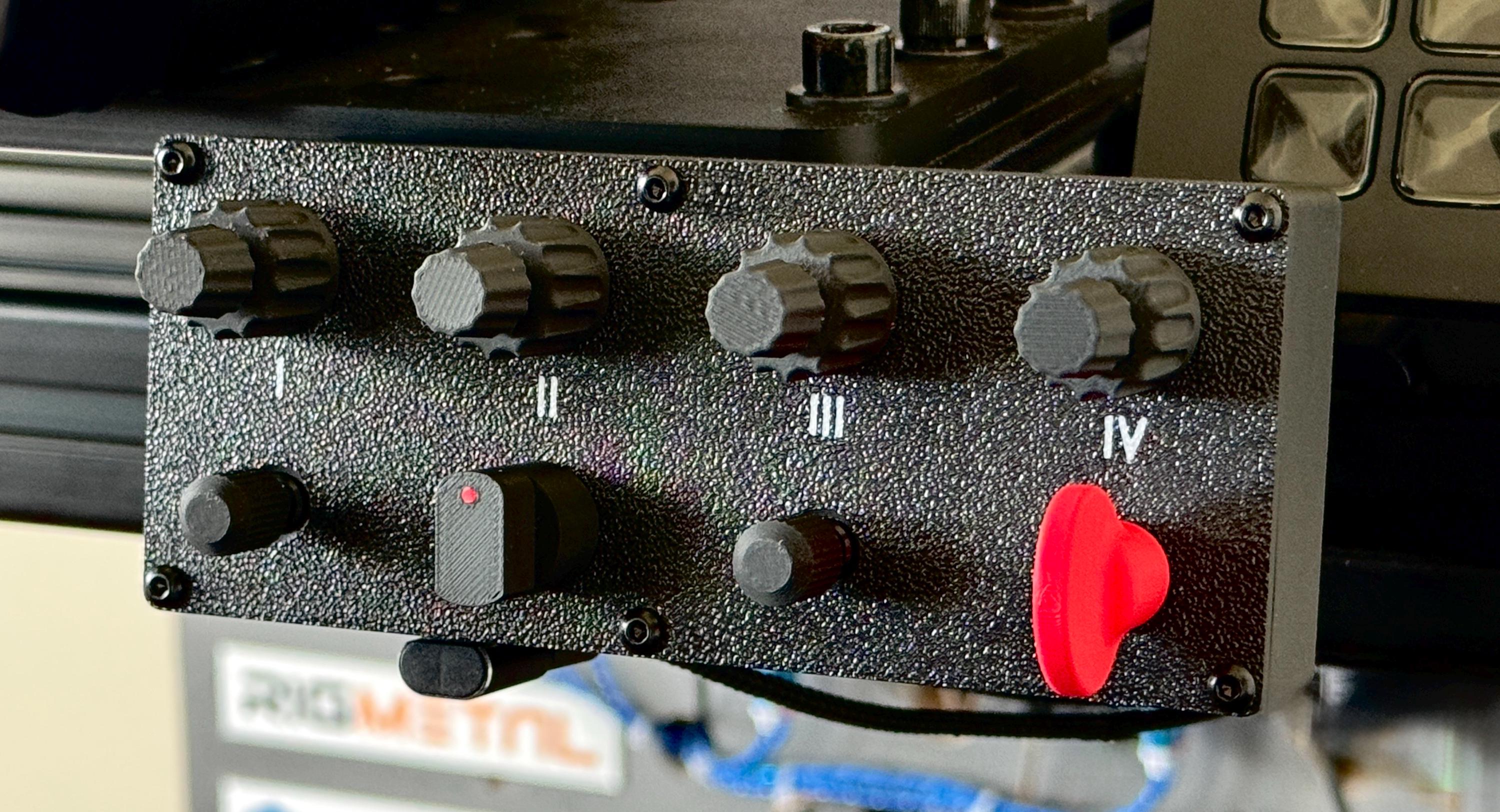

- Roman numerals are optional
- Dimensions: 140mm x 58mm x 25mm (50mm)
- Bracket included
- 3' USB-C to USB-A cable is included

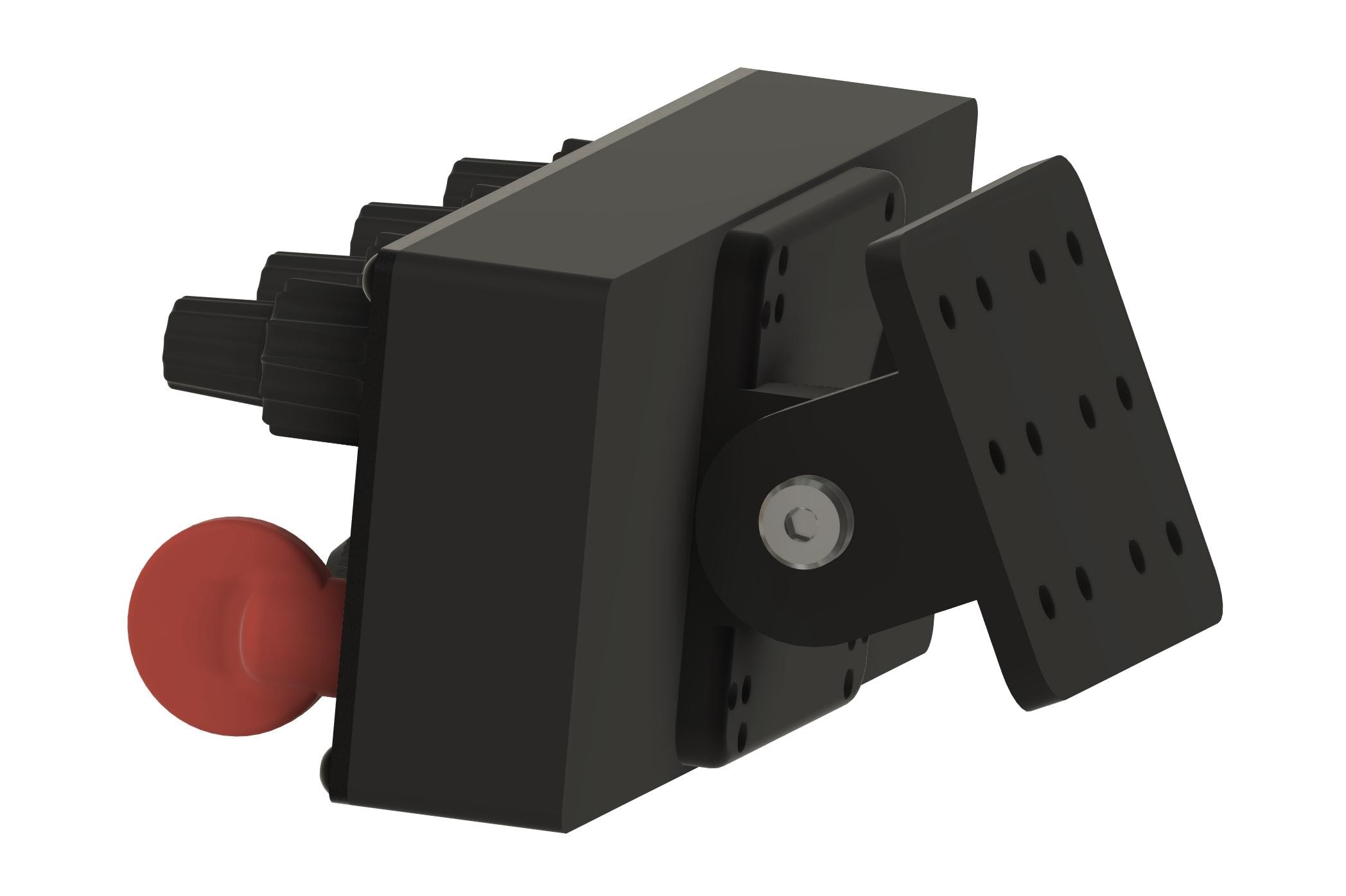

Bracket:

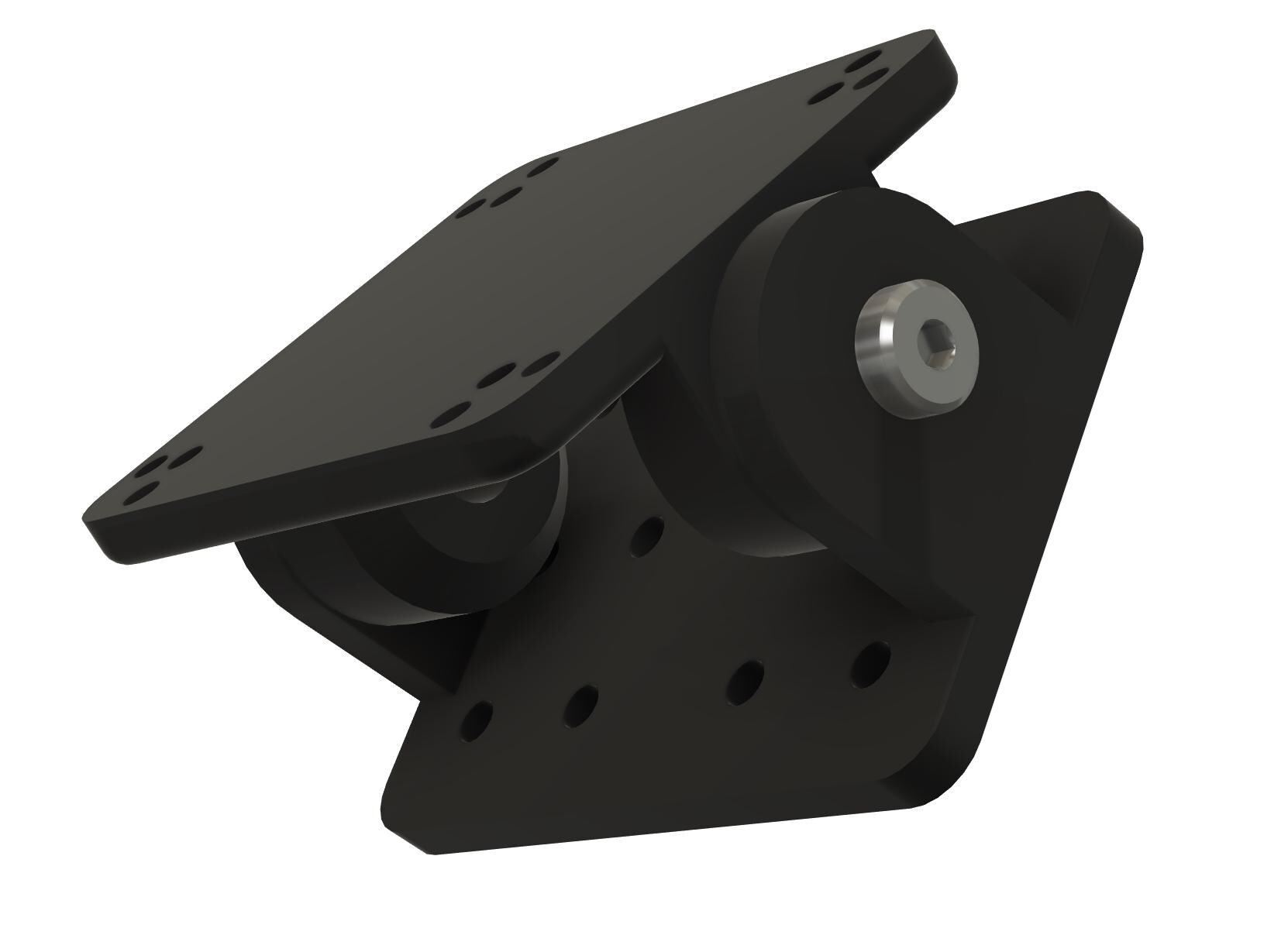

The bracket has an adjustable angle for panel mounting using 3-4mm holes in a grid. If you have a specific mounting requirement, get in touch and I'll see what I can do.

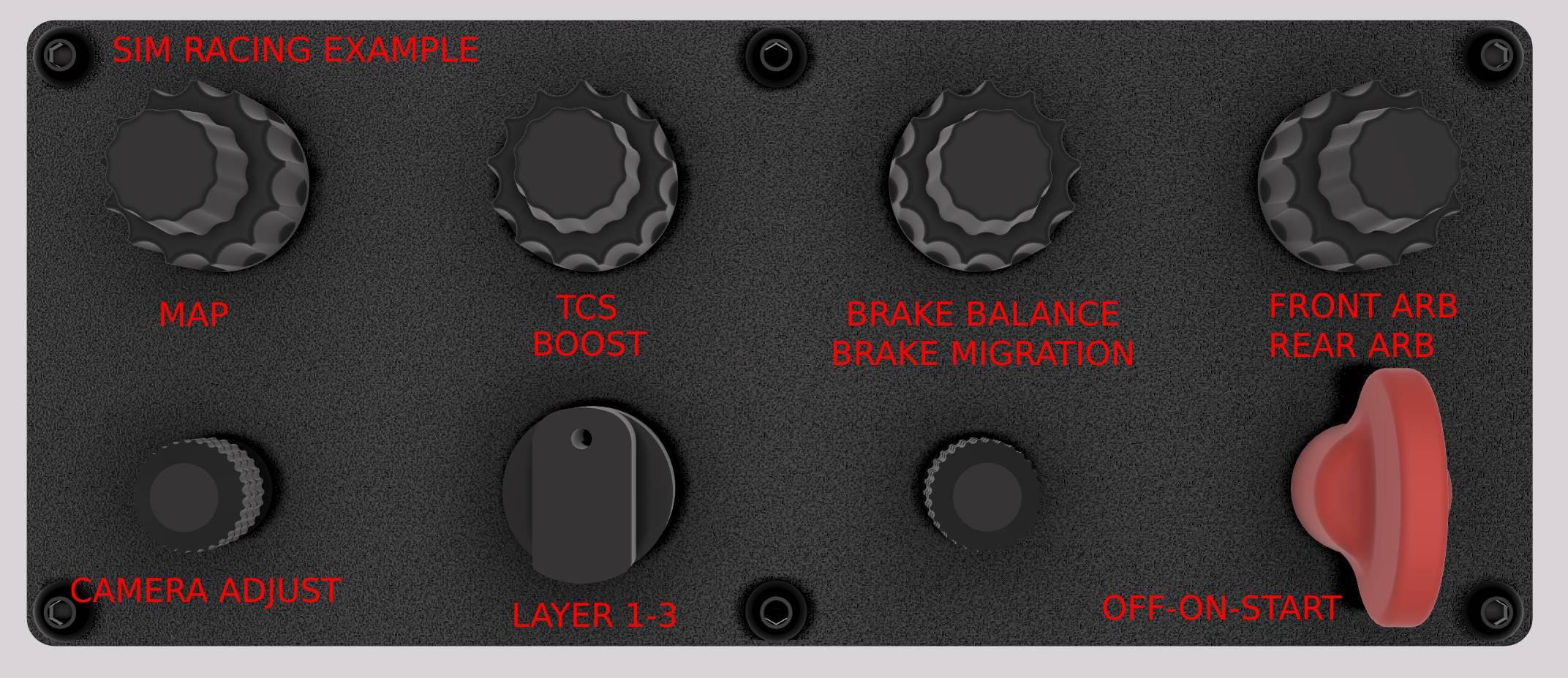

Example configs in the photos above. These configs just give you an idea of what is possible; in flight sims dual encoders are great for adjustables with fast/slow variations of a single input. In simracing they lends themselves to controlling two separate inputs, one on the inner and one on outer. What is ultimately possible is limited by your imagination and the sim title in question.
Note: due to the high number of inputs, Windows Game Controller is unable to display the inputs in it's UI. The device however is working correctly and can be verified with Freds Joystick Tester: https://github.com/fredemmott/Freds-Controller-Tester/releases
